4200 × 2100 × 1100
Working envelope in millimetres of the Four Star double-column centre — the largest of its type in Madhya Pradesh.
Fifteen machines, five engineering platforms, and a working envelope unmatched among establishments in central India.
Working envelope in millimetres of the Four Star double-column centre — the largest of its type in Madhya Pradesh.
Machining centres, precision grinders, lathes, hydraulic presses, milling and drilling equipment.
Equipment procured from Taiwan, Japan, Germany, the United Kingdom, Italy and India.
Unigraphics NX with Mold Wizard, Pro-E, DelCAM, PowerSHAPE and AutoCAD LT.

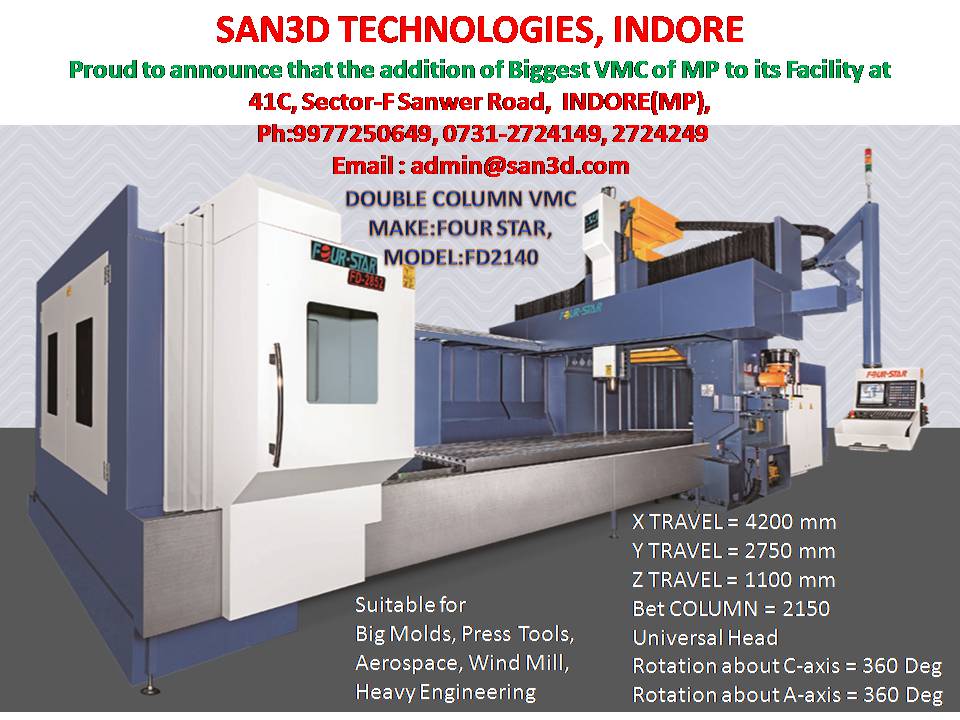

Commissioned in 2019, the Four Star FD2140 double-column vertical machining centre allows SAN 3D Technologies to accept work that would otherwise leave the state. It is suited to large moulds, press tools, aerospace tooling, wind mill components and heavy engineering fabrications.
| Axis / Feature | Specification |
|---|---|
| X travel | 4200 mm |
| Y travel | 2750 mm |
| Z travel | 1100 mm |
| Between columns | 2150 mm |
| Head | Universal, 360° about the C and A axes |
Planned investment extends capacity to components of 8000 × 4000 × 2000 mm as regional demand develops.
The complete installed base, with make, country of origin and working capacity.
| # | Machine | Make | Origin | Capacity (mm) |
|---|---|---|---|---|
| 1 | Double Column Machining Centre | Four Star | Taiwan | 4200 × 2100 × 1100 |
| 2 | Double Column Machining Centre | Yamara | Taiwan | 1600 × 1600 × 750 |

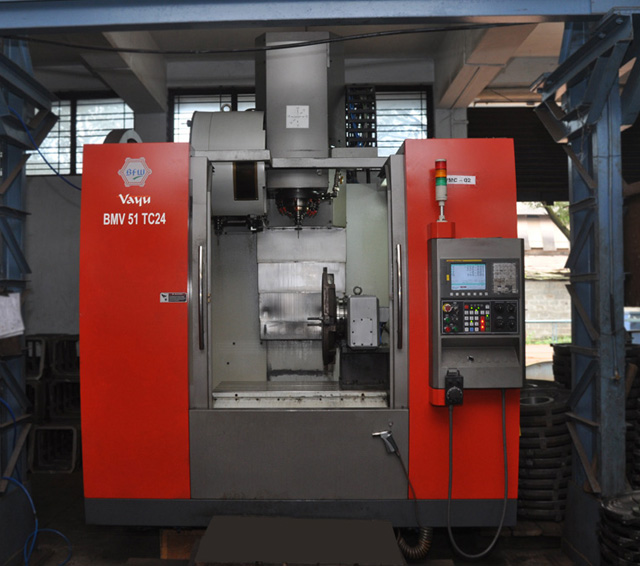

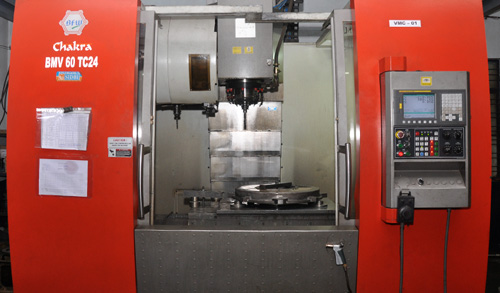

| 3 | Vertical Machining Centre | BFW | India | 1050 × 600 × 650 |
| 4 | Vertical Machining Centre | Beaver | UK | 1050 × 600 × 650 |
| 5 | Vertical Machining Centre | Matsuura | Japan | 600 × 400 × 400 |
| 6 | Surface Grinder | Blohm | Germany | 1000 × 500 × 450 |
| 7 | Surface Grinder | Norton | UK | 700 × 250 × 350 |
| 8 | Centre Lathe | Sandhar | Rajkot, India | ø1000 × 1000 |
| 9 | Centre Lathe | Nagamani | Rajkot, India | ø350 × 700 |
| 10 | Radial Drilling Machine | Prakash | Rajkot, India | ø40 × 900 arm |
| 11 | Radial Drilling Machine | Syndicate | Bhavnagar, India | ø40 × 1000 arm |
| 12 | Hydraulic Press | Galdabini | Italy | 160 tonne |
| 13 | Hydraulic Press | Bemco | India | 40 tonne |
| 14 | Universal Milling Machine | Praga (HMT) | India | 800 × 350 × 400 |
| 15 | Band Saw | Laxson | Rajkot, India | ø200, high speed |
SAN 3D Technologies has operated the principal CAD and CAM platforms since 2005. Licences are held in depth, so several engineers may work a programme concurrently without waiting on a seat.
| # | Software | Licences |
|---|---|---|
| 1 | Unigraphics NX | 5 + 2, with Mold Wizard |
| 2 | Pro-E | 5 licences |
| 3 | DelCAM | 5 licences |
| 4 | AutoCAD LT | 5 licences |
| 5 | PowerSHAPE | 5 licences |
Commitments in progress to close the remaining interval between design and volume production.
Accelerated, higher-fidelity reverse engineering and first-article inspection.
Prototyping held in-house, removing dependence on external suppliers.
Profile cutting on site, shortening die and fixture build cycles.
Sheet metal forming and preparation alongside existing press capacity.
Pattern, model and fixture-board machining in support of prototyping.
Batch and volume production of pressed components from dies built on site.
Sub-assembly welding, enabling delivery of finished assemblies rather than loose components.
Machining capacity to 8000 × 4000 × 2000 mm for components of exceptional scale.
Capacity is available for machining commissions as well as complete tooling programmes. Submit a component drawing and a quotation will follow.
